How practices get a scanner from us
Bring digital scanning into your practice and send your cases to Elegant Dental Lab through one connected workflow.
Questions? Call 877-335-5221
Every scanner we place is new and remains the property of Elegant Dental Laboratory. Your practice keeps the TRIOS 6 as long as it maintains a minimum monthly lab spend of $3,200. If your monthly lab work falls below the minimum, we charge the difference. Available nationwide to new and existing clients.
TRIOS 6 Awards
Recognized by the European Product Design Award and Red Dot, 2025, for 3Shape's product design.

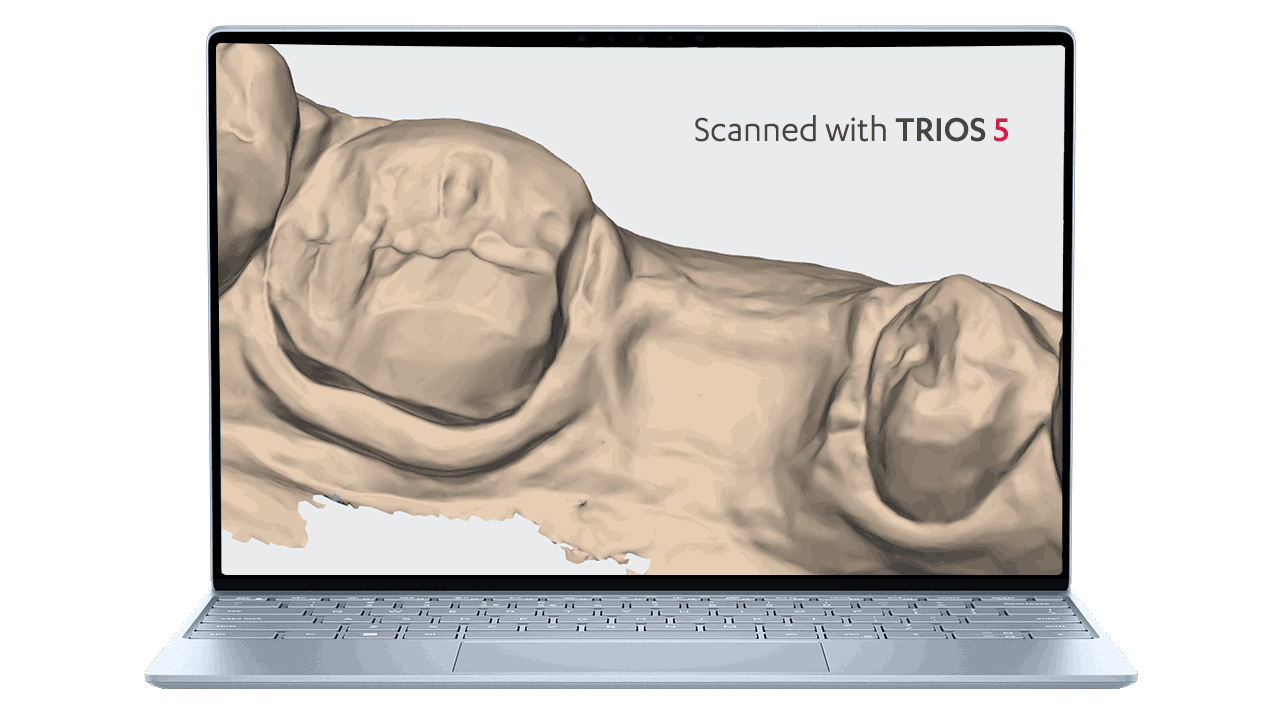

Redefining Scan Quality
Up to 110% higher scan resolution than the rest of the TRIOS line, so margins read clearly the first time. Hyperspectral imaging combines near infrared, blue and white light in a single pass, which gives our technicians more to work with before anything is milled.
Redefining diagnostics
with Dx Plus software
Let technology help you objectively detect key dental pathologies, from caries to tooth wear. Your dental checkups will never be the same.
Always have a second opinion standby with Dx Plus
Exclusive to TRIOS 6, Dx Plus supports your diagnosis and analysis.
Redefining communication with a patient app
The patient app that comes with Dx Plus gives patients on-demand education about their own scans, at the chair and at home.
See more in every scan
TRIOS 6 combines hyperspectral imaging with up to 110% higher scan resolution, within intended use, for more detail and confident restorative workflows.
Make the conversation clearer
Dx Plus visualizations and the patient app turn scan data into clear conversations, helping patients understand findings and next steps in the chair or at home.
Keep care moving between visits
The patient app uses each scan to highlight areas of concern and share personalized prevention guidance, helping patients build healthier routines between appointments.
TRIOS 6 technical details
The product facts behind a wireless digital workflow, from scan detail and diagnostics to setup, connectivity, and computer requirements.
Setup options
Depending on the way you intend to use the impression scanner, you can choose a setup with a pod and computer, or a MOVE Pro cart setup with a built-in computer and adjustable screen.
Indications for use
- Restorations
- Orthodontics
- Implantology
- Assessment of dental status.
New innovations
- Advanced hyperspectral technology capturing data across multiple light sources with every scan.
- Up to 110% higher scan resolution for more details and great restoration fit (within intended use).
- Working with AI assistive diagnostics software that enables objective detection of key oral health conditions.
Scanner specs
Proven clinical accuracy: backed by a multitude of independent scientific studies for a wide variety of workflows.
TRIOS 6 captures 2400 images per second, uses white light, UV light and Near Infrared LEDs as light sources. It outputs PLY, DCM and STL files.
TRIOS 6 is 3.8 x 3.9 x 26.6 centimeters and weighs 308 grams.
The scanner is wireless and can be placed on a pod when not in use.
- 3 rechargeable batteries
- Charging time: battery takes less than 2 hours to get fully charged
- Wireless range: The 5GHz wireless connection link lets you cover a distance up to 15 meters
- With TRIOS Share you can scan in any clinic room
PC requirements
Included with the scanner we place: a 3Shape approved, preconfigured computer with TRIOS software installed. The pod scan setup comes with either a laptop or desktop computer; whereas the MOVE Pro comes with a built-in desktop. All computers run on Windows 11 Pro.
Another important element of your solution is your ethernet speed. All communication with labs, partners and servers will happen through your ethernet connection. The faster the network, the faster you can send and receive an order. A typical TRIOS order of 30Mb will take approx. 30 seconds to transmit on a 10Mbit/s line.
What comes included?
TRIOS 6 comes with everything you need to start scanning right away, from the scanner and tips to a preconfigured computer, software, and onboarding with 3Shape.

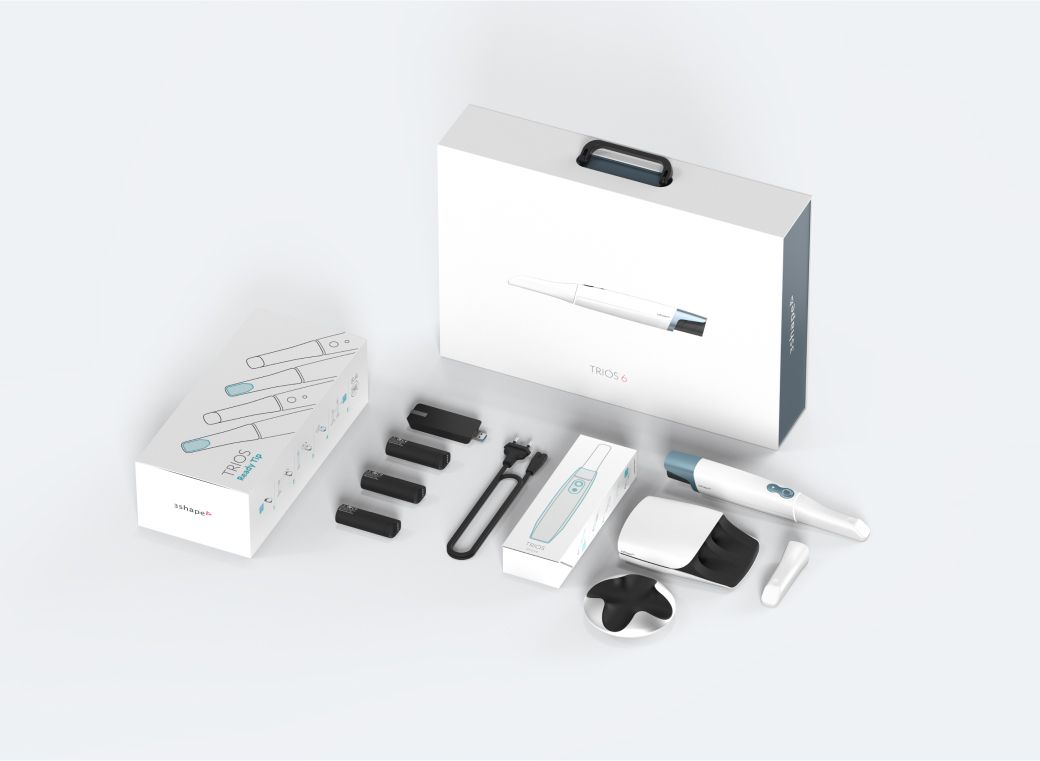

Scanner
TRIOS 6 wand, pod, and a box of 100 sleeves.

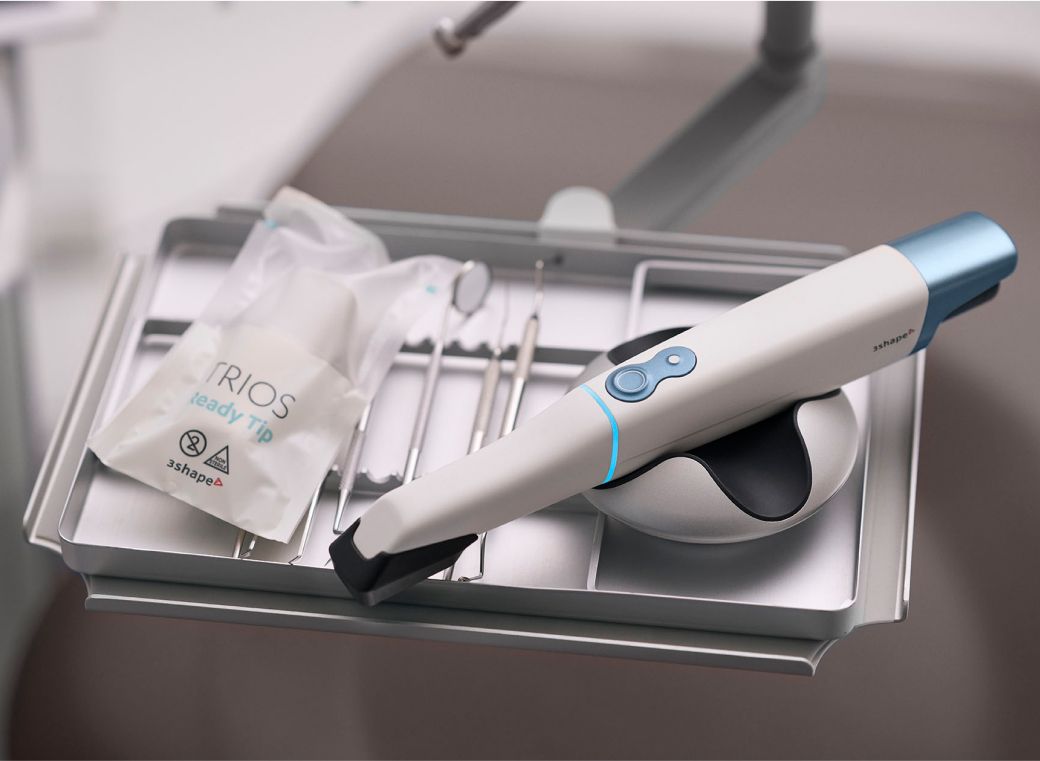

Tips & batteries
25 Ready Tips, an autoclavable tip, a protection tip, three batteries, and charger.

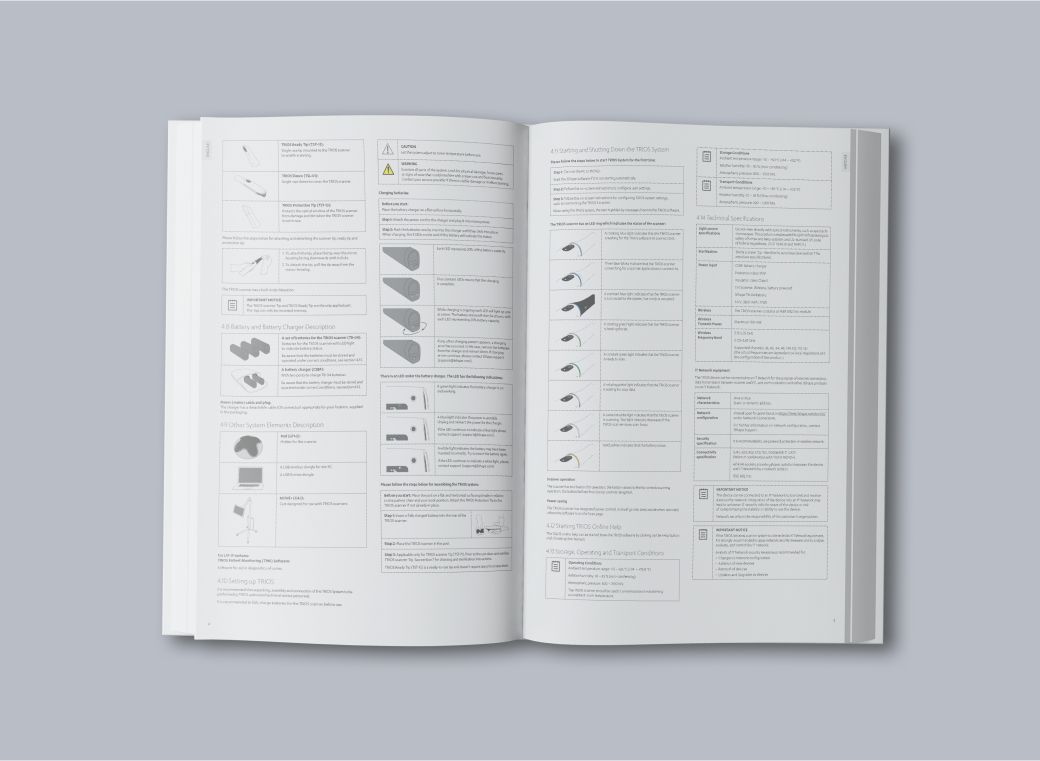

Connectivity & documentation
Wireless receiver plus cleaning, start-up, safety, and setup guides.

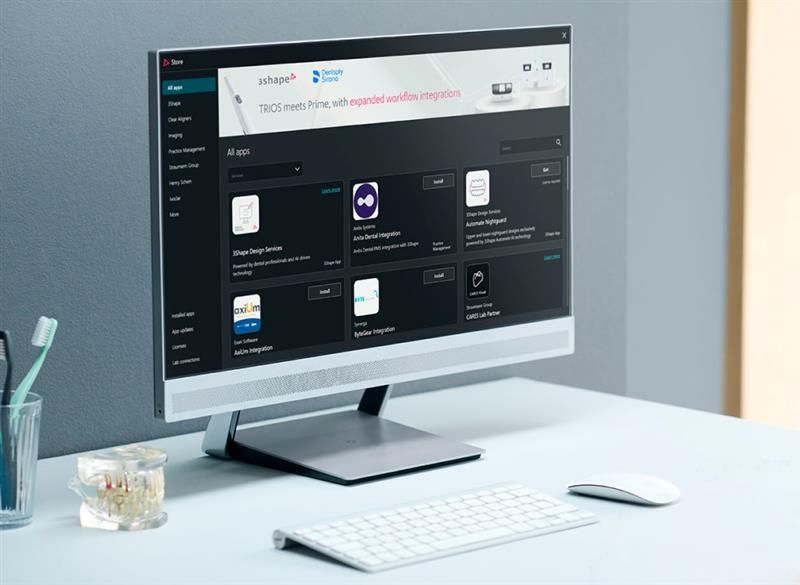

3Shape Unite connects a TRIOS scan to the patient outcome, with Unite Cloud and Store for partner integrations.

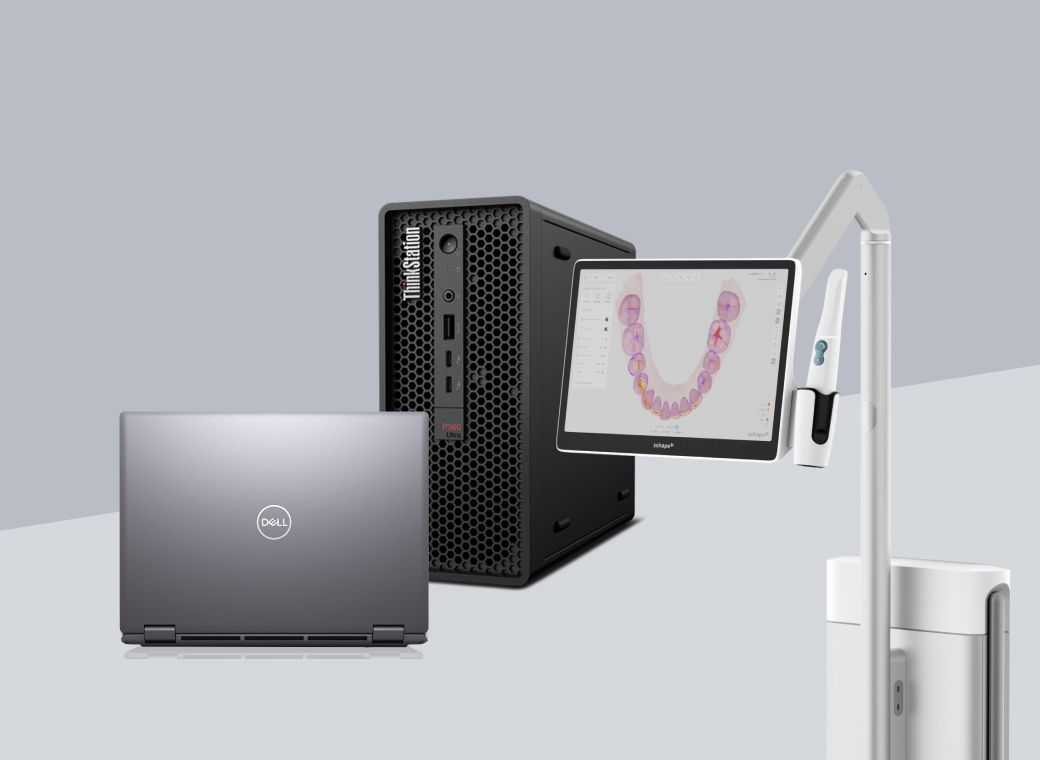

Choose MOVE Pro with its built-in computer, or a preconfigured laptop or desktop computer.
Welcome card, safety and setup guide, plus quick start-up and cleaning guides.

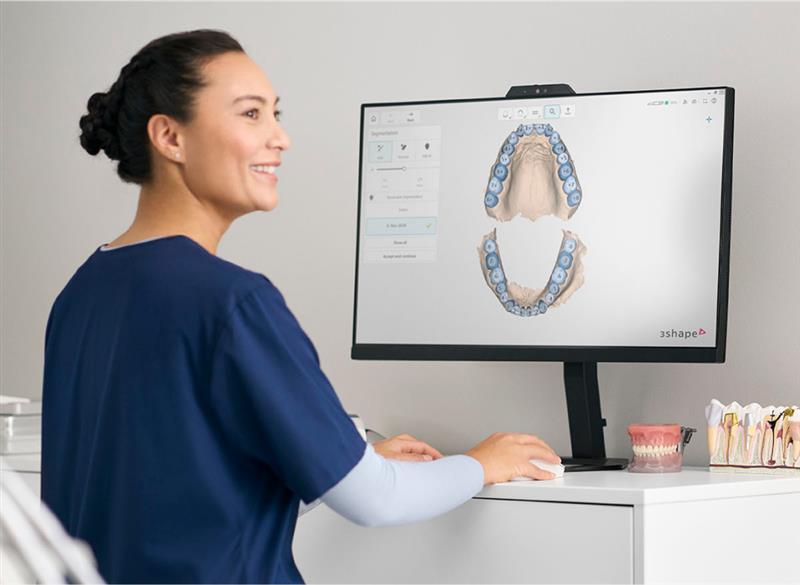

3Shape Unite, patient engagement apps, TRIOS Share, and 3Shape Model Builder Express.
The first year of 3Shape TRIOS Care includes onboarding, training, support, warranty, and express replacement.
Ask us about Studio Apps for in-house dentistry and additional accessories, including scanner tips.
The scanner is the start. You send digital cases to Elegant Dental Lab, we produce them and coordinate delivery. Call 877-335-5221.
Scanner Program FAQ
Common Questions About the TRIOS 6 Program
How much does the scanner cost?
There is no purchase price. The TRIOS 6 is free to use while your practice maintains a minimum monthly lab spend of $3,200 with Elegant Dental Laboratory.
What if our lab work is below the minimum in a month?
We charge the difference between your lab work and the minimum for that month.
Is there a contract term?
There is no fixed term. Your practice keeps the scanner as long as it maintains the minimum monthly lab spend.
Who can join the program?
New and existing Elegant Dental Laboratory clients anywhere in the United States.
How soon will we receive the scanner?
Usually 2 to 3 weeks after approval. We cover shipping.
Is the scanner new?
Yes. Every scanner we place is new.
Do we have to send all our cases to Elegant?
No. You only need to meet the monthly minimum. You can also use the scanner to send scans to other labs and to aligner companies.
Can we buy the scanner?
No. The scanner is leased to your practice and remains the property of Elegant Dental Laboratory. There is no buyout option.
What happens if we stop working together?
The scanner is returned to us, and we cover the return shipping.
Who handles setup, training and support?
3Shape. You register the scanner with 3Shape, and the first year of 3Shape TRIOS Care, including onboarding, training, technical support and warranty, is included. After the first year, TRIOS Care and software subscriptions are arranged directly between your practice and 3Shape. Elegant Dental Laboratory supports your digital case submissions.
Who is responsible if the scanner is damaged or lost?
Your practice is responsible for the scanner while it is in your care, including damage, loss or theft.
Is Elegant Dental Laboratory an authorized 3Shape partner?
Yes. Elegant Dental Laboratory is an authorized 3Shape partner.
