Why is zDental Night Guard material good for making Night Guards?

27 September 2022

A fast-printing resin used for night anti molars protective sleeve. It provides the high precision, and good details. Besides, it has a balance between good flexibility and strength.

Printing Speed

Keep in mind with this material combined with the amazing NBEE 3d Printer, the set printing speed is 6 arches with in 5 minutes up to 15 minutes.

Here is a quick demonstration of how the NBEE printing nightguards with the zDental Night Guard printing material below.

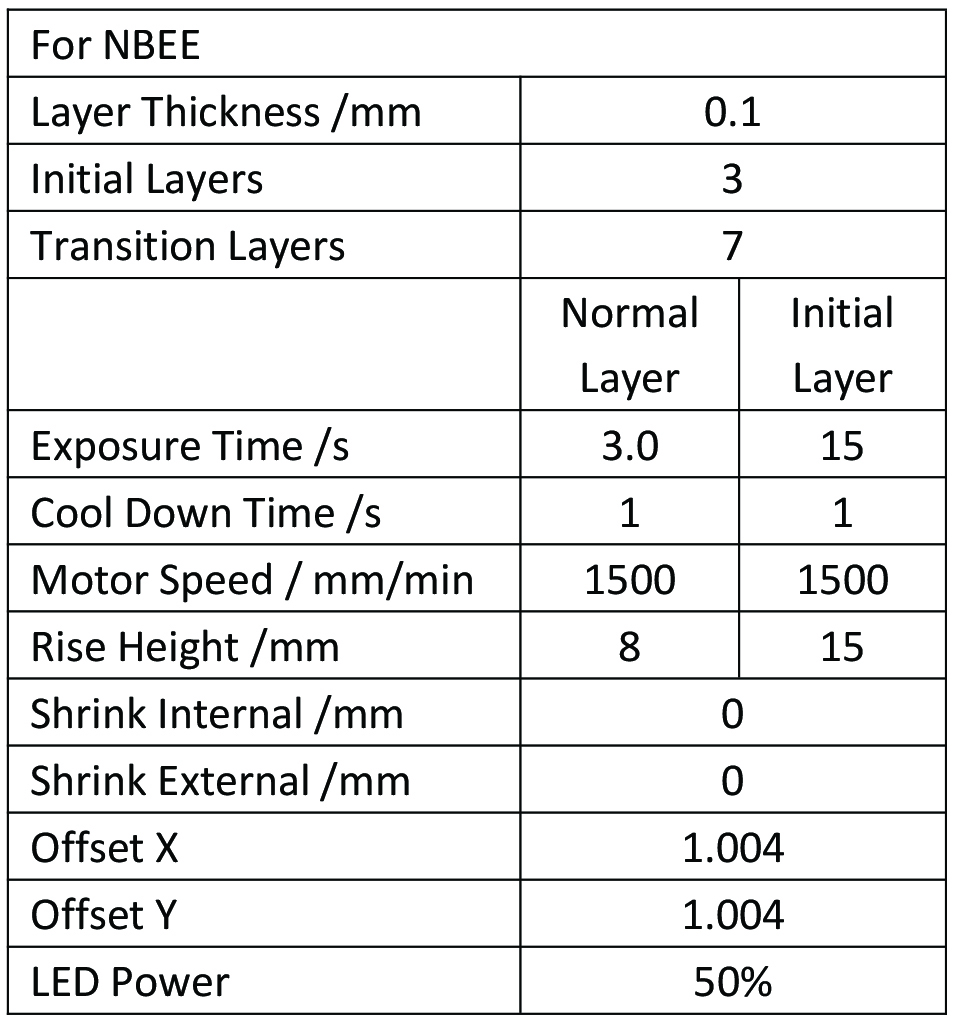

1. Suggested Printing Parameters

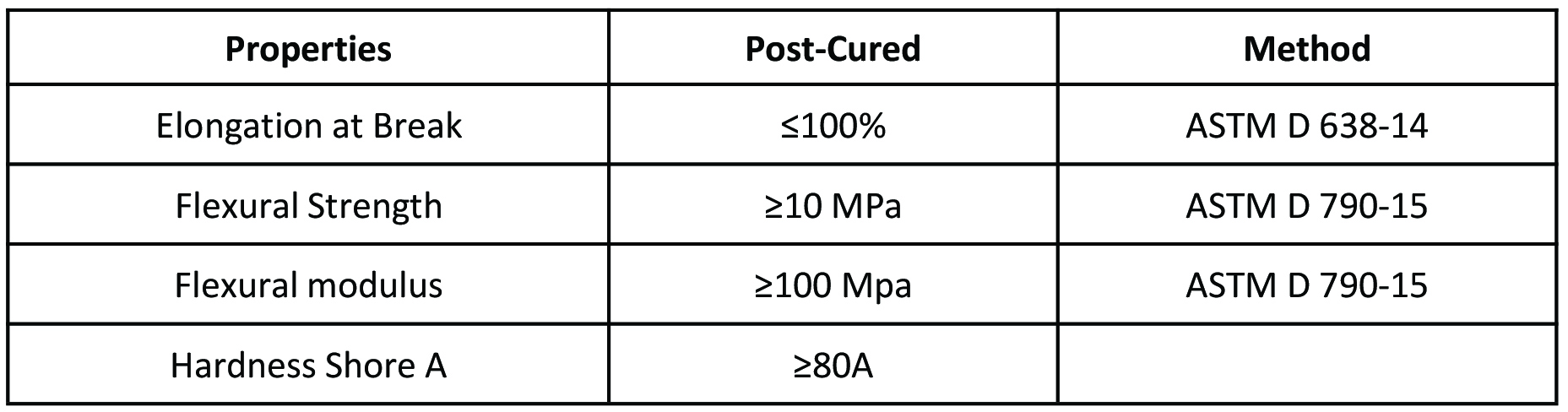

2. Properties Data

3. Storage

Stored in dark place where avoid direct sunlight or any kind of UV light, environment temperature is suggested around 5 to 30℃,and environment humidity is less than 45%RH.

4. Precautions

  1. Before use, shake the resin bottle well for 5-10 minutes to make the resin uniform. After the resin is poured into the resin tank, let stand still for 5 to 10 minutes before start a print job.
  2. The good using temperature for this resin is 18-28℃. Use the resin away from direct sunlight or any kind of UV light.
  3. After the model is printed, please take it out in time and wash it with 95% concentration alcohol. Using an ultrasonic cleaner, the cleaning time depends on the size and complexity of the model, but the time should not be too long, otherwise the structural performance of the model will be reduced, what is no more than 2 minutes is suggested.
  4. After the model is cleaned, immediately blow it dry with an air gun and post cure the model with a UV light,the post-curing time is depended on the curing machine.
  5. It’s not recommended to leave the resin in the resin tank for over 12 hours. For better printing results, please restore the remaining resin in resin bottle. Shake well before next use.
  6. Wear nitrile rubber gloves and a face mask when using this product. Keep the room ventilated. Swallowing such as eating and drinking is forbidden in the printing place.
  7. If the user accidentally drops the resin on the skin, please wipe it away and then clean again with water. Use hand sanitizer or soap to assist in washing. If the users still feel uncomfortable, please see a doctor immediately. If the user accidentally splashes the resin in the eyes, flush with plenty of water and seek medical attention immediately. More safety details please refer MSDS of this resin.
